20/28/.410 Guage Over-Under Parts

All Sub-Gauge Part Numbers Start with "4" instead of "7"



             Click Here for Parts Schematic

ImagesItem #ComponentPriceQty
402000 Front Sight- Brass Bead (Thread 6-48)
$ 4 00
402000TL Front Sight - Target (4mm White Bead - Thread 3-48)
$ 6 00
402000TS Front Sight - Target (3mm White Bead - Thread 3-48)
$ 6 00
402000WL Front Sight (4mm White Bead - Thread 6-48)
$ 6 00
403000 Middle Bead - Nickle(Thread 3-48)
$ 4 00
404001 Top Lever Spring (Fitting Required)
$ 25 00
404003 Top Lever Shaft
$ 20 00
404003-IO Top Lever Shaft (500-600-700 Bottom Install Style)
$ 20 00
404003A Top Lever Shaft Screw
$ 3 00
404004 Top Lever Spring Screw
$ 3 00
404050 Top Lever- 505/585 (Silver Receiver)[fitting required]
$ 75 00
404060 Top Lever 605/685/85TSS[fitting required]
$ 90 00
404070 Top Lever -785[fitting required]
$ 100 00
404080 Top Lever- 885[fitting required]
$ 120 00
405000 Locking Piece Silver (Fitting Required)
$ 40 00
405002 Locking Piece Retainer Spring
$ 4 00
405301 Ejector-Left-20ga (Top BBL)[fitting required]
$ 60 00
405301-28 Ejector-Left-28ga (Top BBL)[fitting required]
$ 60 00
405301-410 Ejector-Left-410ga (Top BBL)[fitting required]
$ 60 00
405302 Ejector-Right-20ga (Bott BBL)[fitting rquired]
$ 60 00
405302-28 Ejector-Right-28ga (Bott BBL)[fitting rquired]
$ 60 00
405302-410 Ejector-Right-410ga (Bott BBL)[fitting rquired]
$ 60 00
405303 Ejector Spring Guide
$ 9 00
405304 Ejector Spring
$ 9 00
406004 Hammer Pin
$ 4 00
406005 Hammer Spring Retaining pin and sear pin
$ 4 00
406030 Hammer-Left (Top BBL)
$ 40 00
406031 Hammer Spring-Left (Top BBL)
$ 30 00
406032 Sear-Left (Top BBL)
$ 30 00
406090 Hammer-Right (Bott BBL)
$ 40 00
406091 Hammer Spring-Right (Bott BBL)
$ 30 00
406092 Sear-Right (Bott BBL)
$ 30 00
406093N Sear Springs (fits both sides) [NEW]
$ 5 00
406094 Sear Spring Retaining Screw
$ 3 00
406101-IOC Firing Pin (Long-Top BBL-Chrome)(Old Models-500/600/700)
$ 30 00
406101A Firing Pin (Long - Top BBL)
$ 25 00
406102Z Firing Pin Short Zinc (Bott BBL)
$ 30 00
406103 Firing Pin Retractor Spring
$ 3 00
406103-IO Firing Pin Retractor Spring(Old Models-500/600/700)
$ 3 00
406104 Firing Pin Retainer
$ 8 00
406601N Cocking Piece - Left - [New]
$ 16 00
406602N Cocking Piece - Right - [New]
$ 16 00

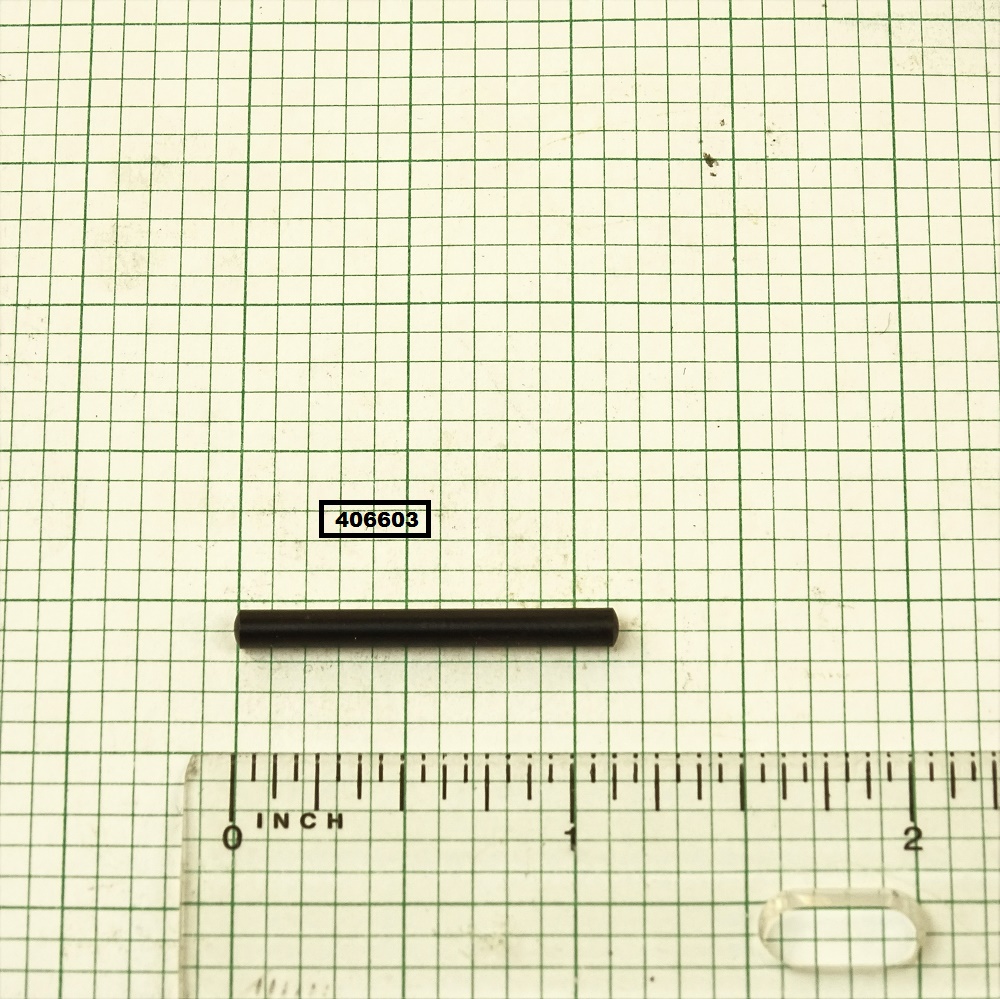

406603 Cocking Piece Pin
$ 4 00
406604 Cocking Rod
$ 12 00
406605N Cocking Piece Retractor Spring [NEW] (Requires new style Cocking Piece)
$ 5 00
408100 Pivot 505 (Blue Receiver)
$ 30 00
408100A Pivot 505 -585 (Silver Receiver)
$ 30 00
408100B Pivot 605 -685 (Silver Receiver)
$ 40 00
408100C Pivot 885 Silver
$ 53 00
408100D Pivot 785 Silver
$ 47 00
408100E Pivot 85TSS Silver
$ 47 00
408101 Pivot Retainer Screw
$ 3 00
409000AP Trigger w/Selector- Chrome
$ 60 00
409000B Trigger w/Selector - Gold
$ 86 00
409001B Trigger Only - Gold
$ 66 00
409002 Trigger Pin
$ 3 00
409004 Connector Block
$ 25 00
409004A Connector Block - Mechanical
$ 60 00
409005 Connector Pin
$ 3 00

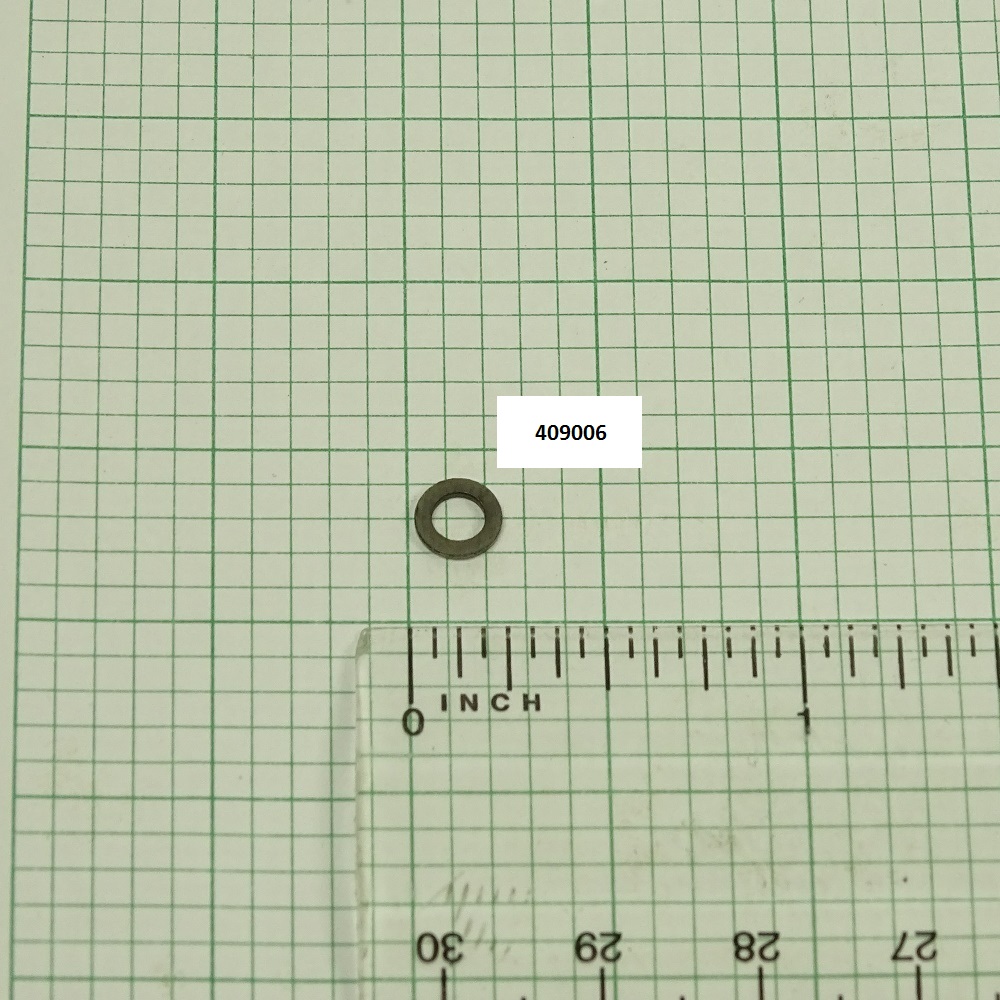

409006 Connetor Pin Washer
$ 3 00
409007 Connector Pin Snap Ring
$ 3 00

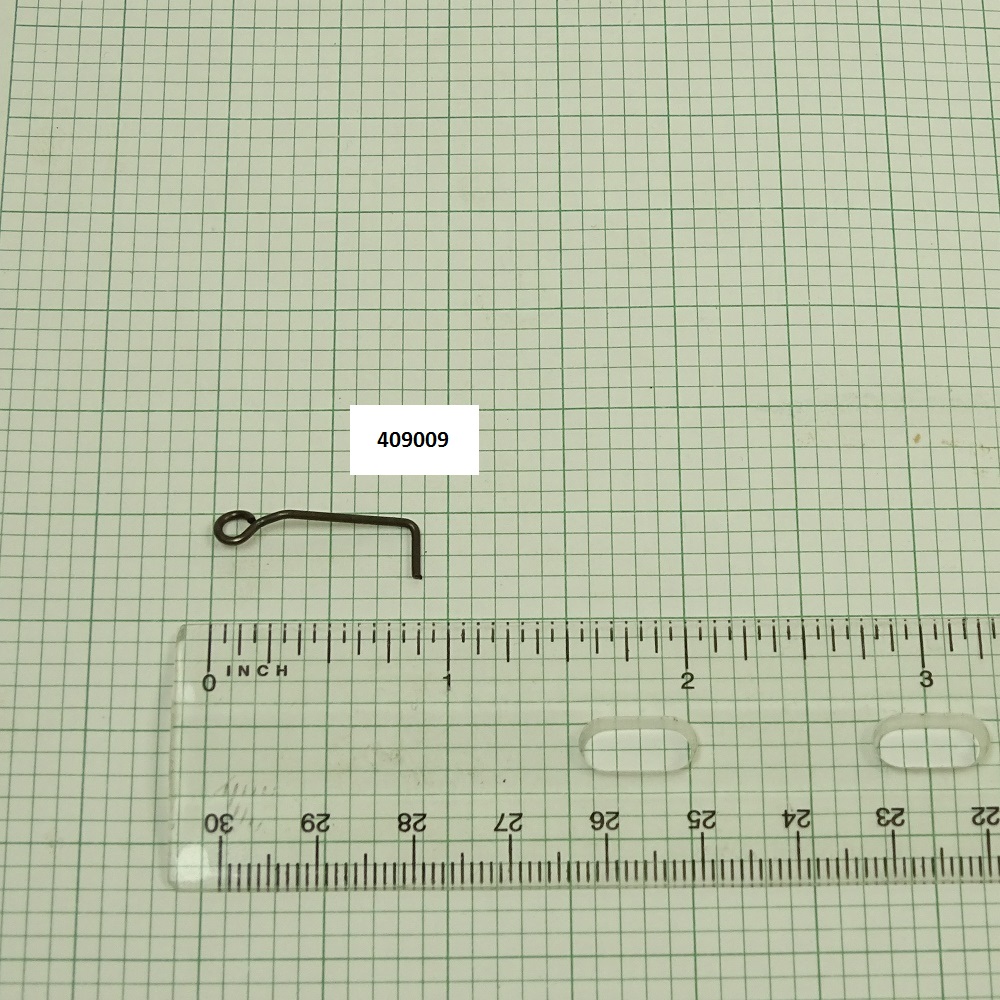

409009 Trigger Spring
$ 6 00
409010 Trigger Spring Retainer Screw
$ 3 00
409011 Connector Guide Plate
$ 6 00

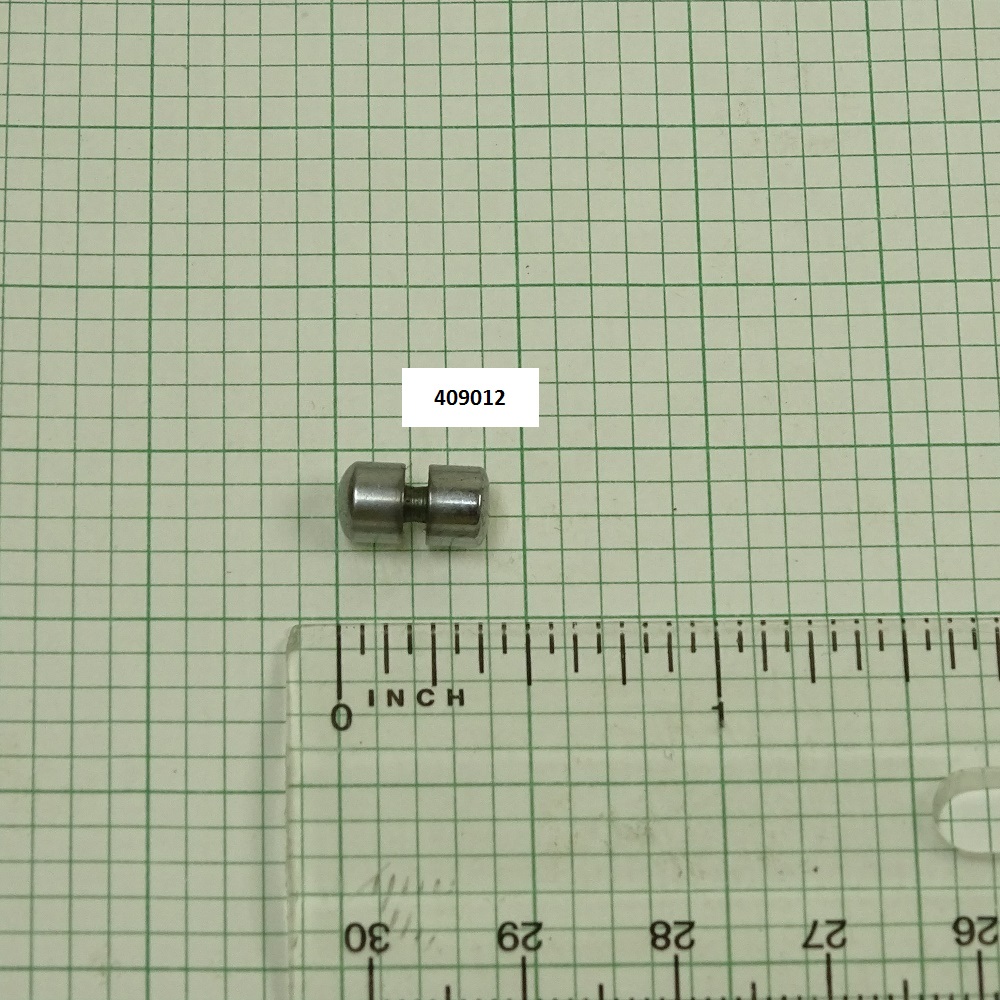

409012 Selector Button
$ 6 00
409013 Selector Spring Plunger
$ 3 00
409014 Selector Spring
$ 3 00
409015 Selector Spring Retaining Screw (Old Style)
$ 3 00
409015A Selector Spring Retaining Pin (New Style)
$ 3 00

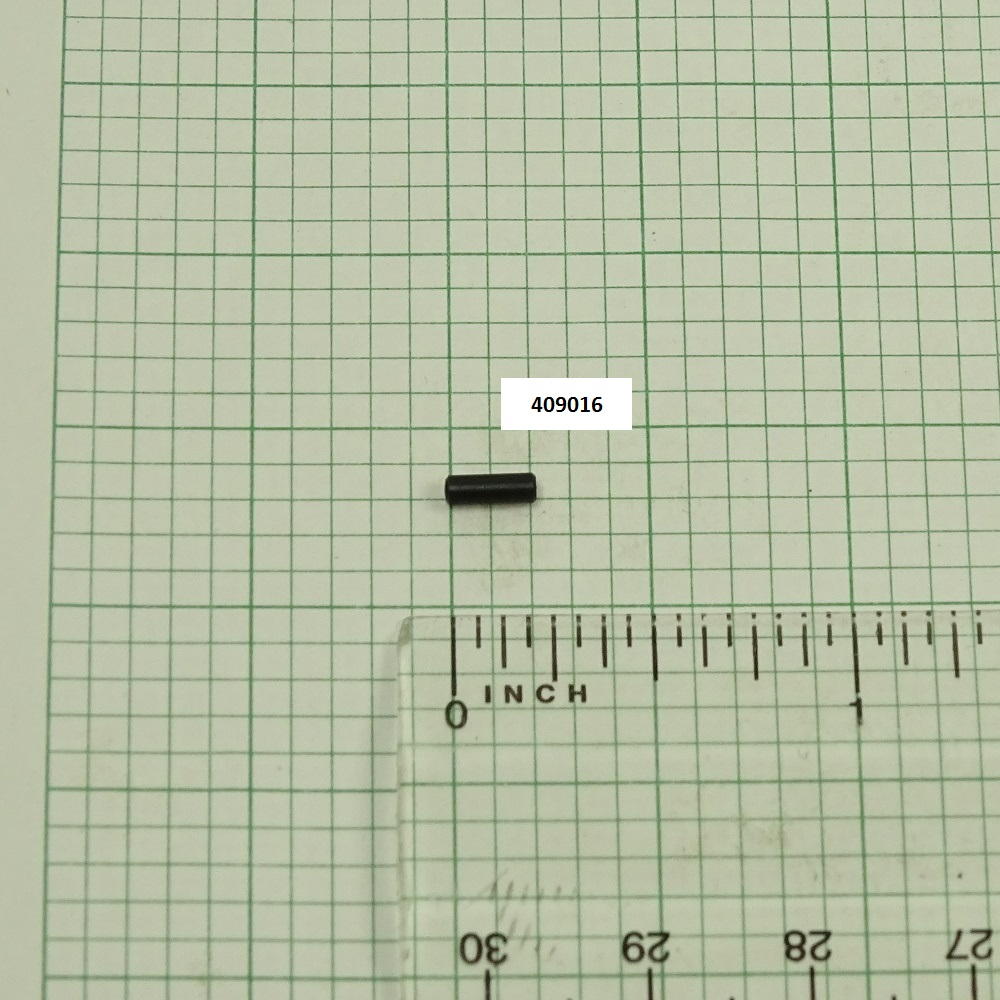

409016 Connector Guide Plate Pin
$ 3 00
409018 Connector Spring
$ 3 00
409019 Connector Spring Plunger
$ 3 00

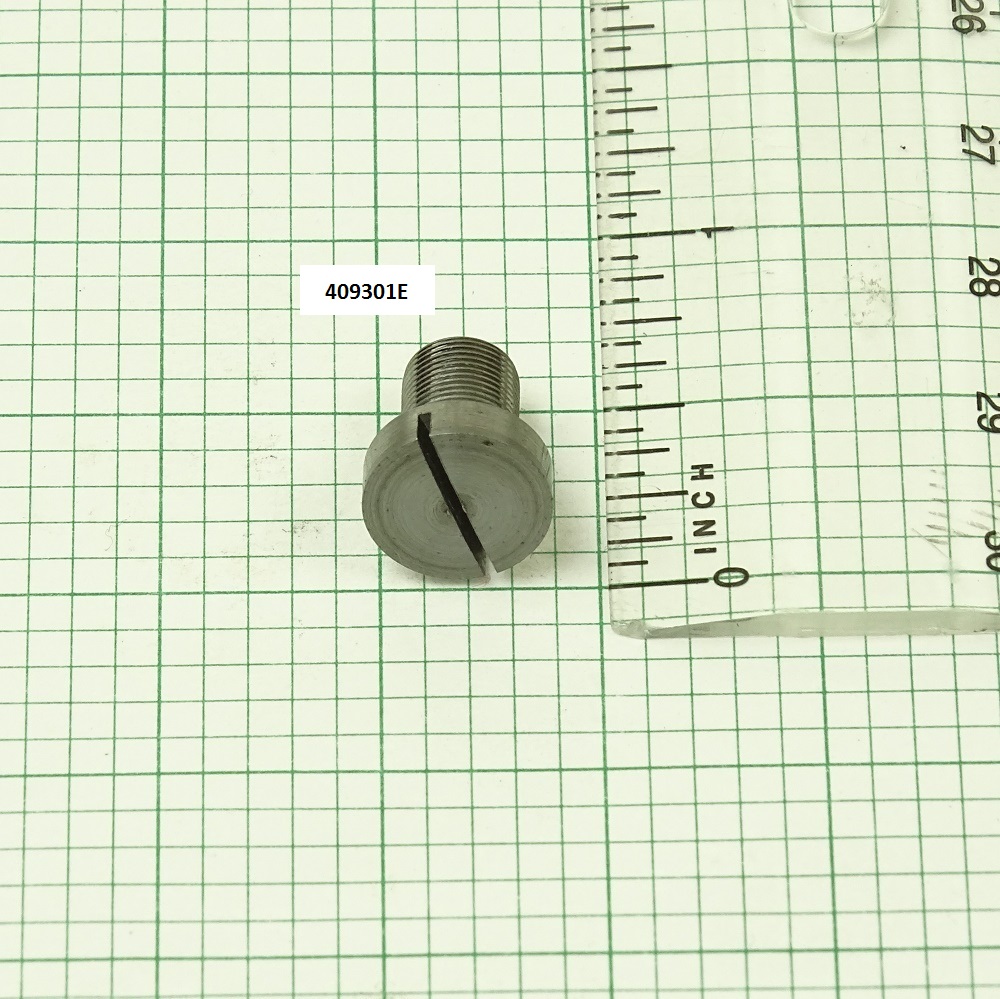

409301E Trigger Plate Screw - Unfinished - Fitting Required
$ 20 00
409302 Trigger Plate Screw Locking Screw(Plain)
$ 10 00

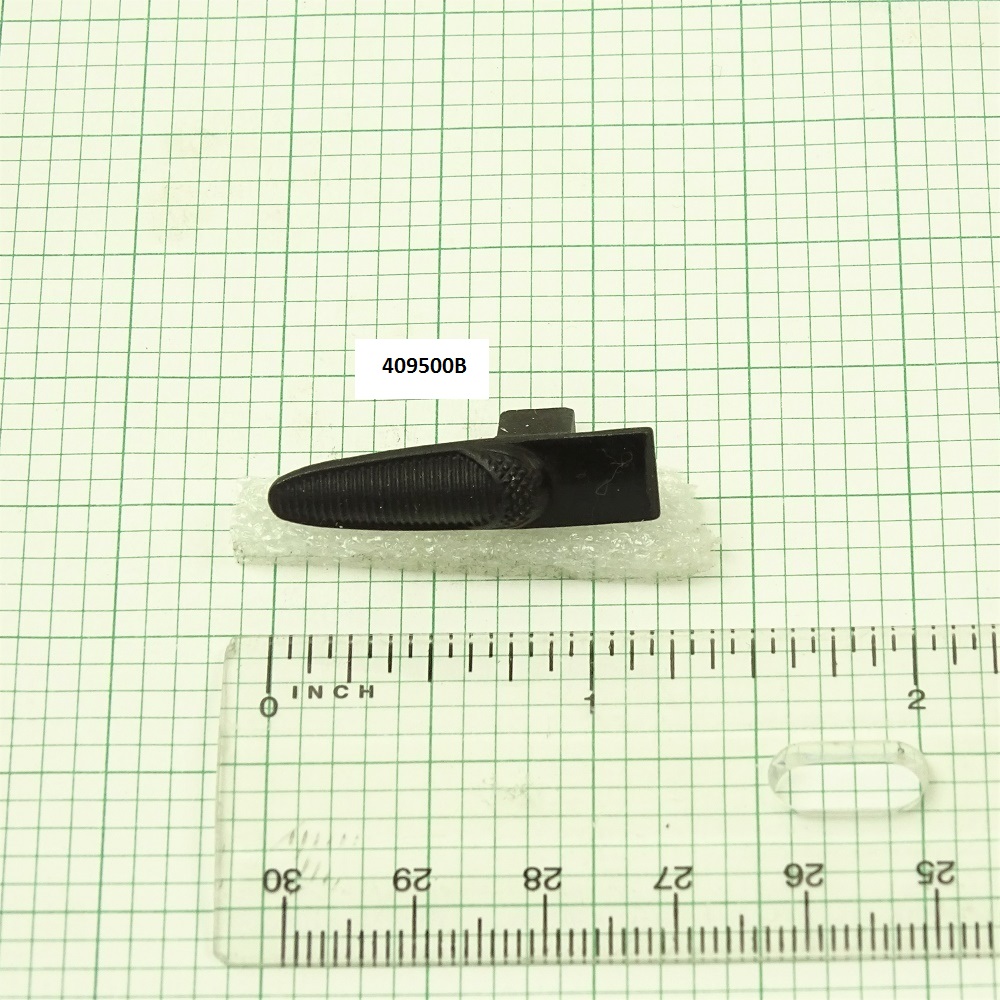

409500B Safety Button - Blue
$ 12 00

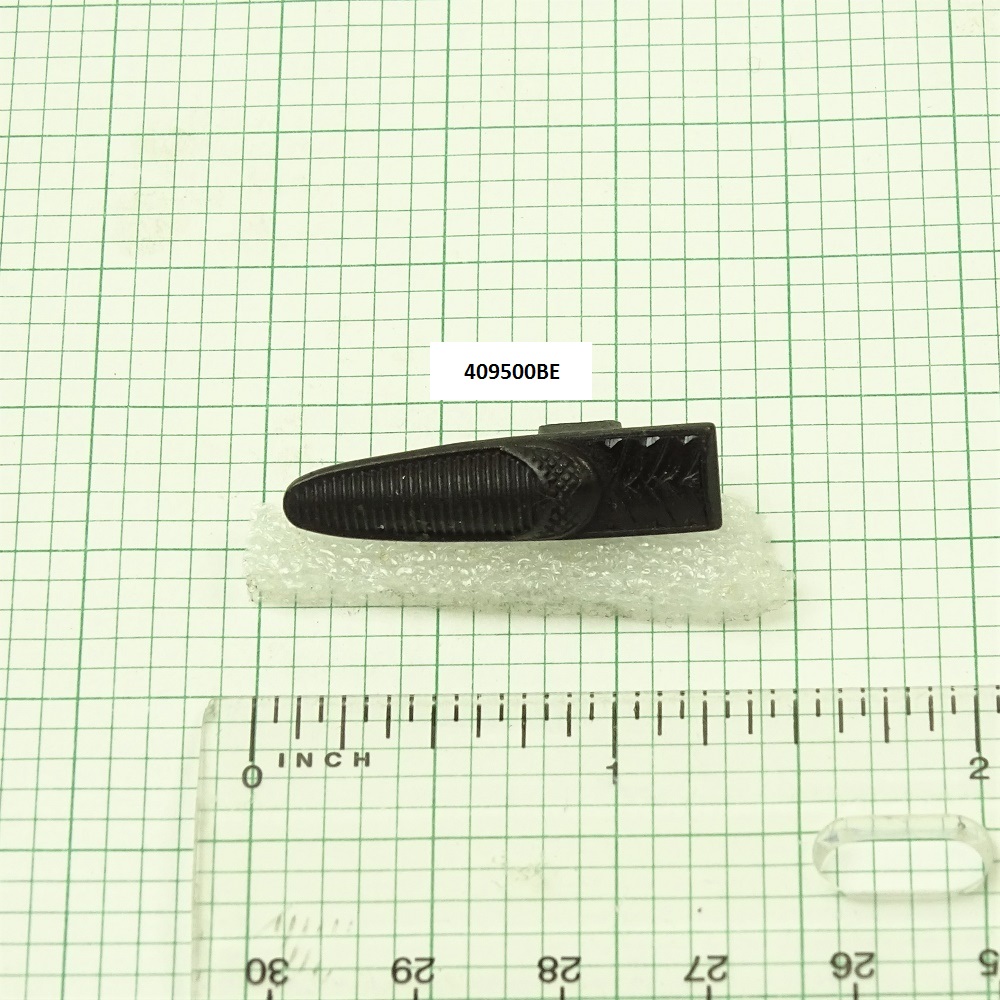

409500BE Safety Button - Blue Engraved
$ 12 00
409500C Safety Button -785
$ 12 00
409501 Safety Button Spring
$ 4 00
409501-W Weatherby Safety Button Spring
$ 4 00
409502 Safety Button Retainer Screw
$ 3 00
409503 Safety Button Pin
$ 3 00
409504-W Weatherby Auto-Safety Transfer Bar
$ 6 00
409505A Weatherby Auto-Safety Plunger
$ 3 00

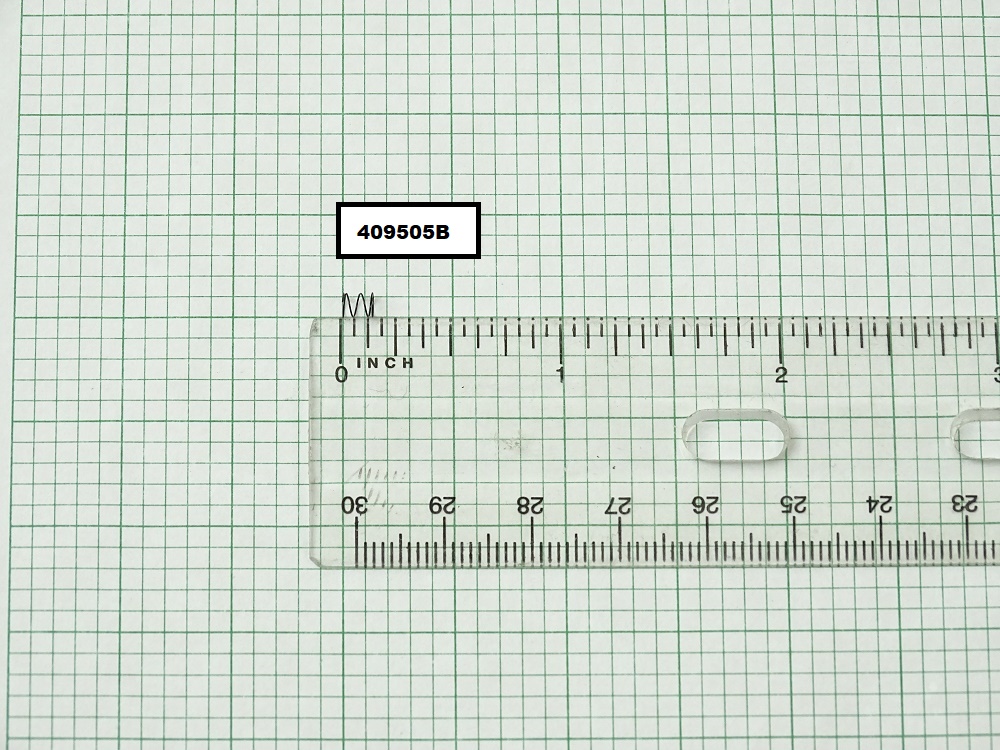

409505B Weatherby Auto-Safety Coil Spring
$ 3 00
409506 Safety Locking Block
$ 12 00
410001 Trigger Guard Screw (Long Tang) Blue
$ 8 00
410001E Trigger Guard Screw (Long Tang) Blue Engraved
$ 12 00
410001EC Trigger Guard Screw (Long Tang) Chrome Engraved
$ 12 00
410001EN Trigger Guard Screw (Long Tang) Nitride Engraved
$ 12 00
410001EW Trigger Guard Screw (Long Tang) White Engraved
$ 12 00
410001N Trigger Guard Screw (Long Tang) Nitride
$ 8 00
410001W Trigger Guard Screw (Long Tang) White
$ 8 00
410002 Trigger Guard Retainer Pin (Short Tang)
$ 3 00
410050-1B-SL-HU Trigger Guard Blue Screw Long "HUNTING"
$ 55 00

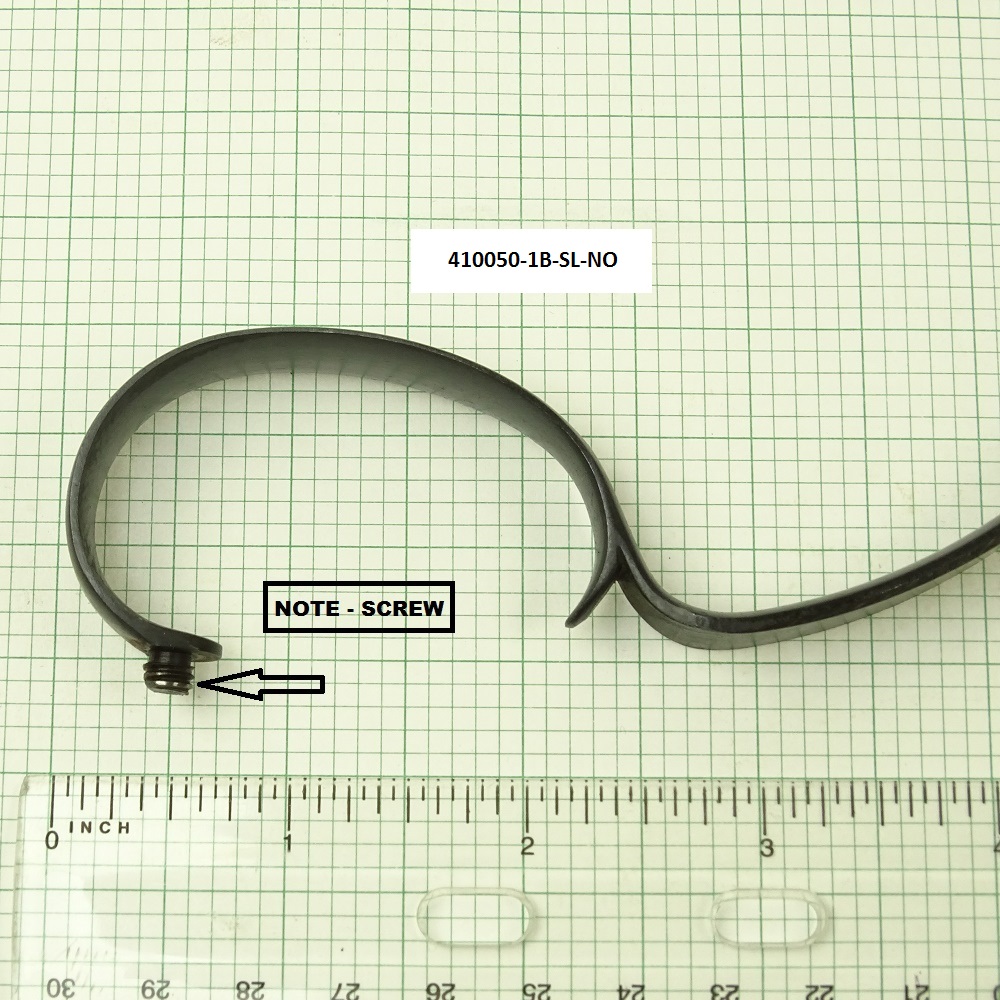

410050-1B-SL-NO Trigger Guard Blue Screw Long
$ 55 00
410050-1B-SS-NO Trigger Guard Blue Screw Short
$ 55 00
410050-1M-SS-NO Trigger Guard Matte Screw Short
$ 55 00
410050-1S-HS-HU Trigger Guard Silver Hook Short "HUNTING"
$ 55 00
410050-1S-HS-SK Trigger Guard Silver Hook Short "SKEET"
$ 55 00
410050-1S-HS-SP Trigger Guard Silver Hook Short "SPORTING"
$ 55 00
410050-1S-SE-NO Trigger Guard Silver Screw English
$ 55 00
410050-1S-SE-W Weatherby Trigger Guard Silver Screw English "W"
$ 55 00
410050-1S-SS-TG Trigger Guard Silver Screw Short "TARGET"
$ 55 00
410050-IO-6S Ithaca Trigger Guard 600 Style Silver
$ 66 00
410050-IO-7S Ithaca Trigger Guard 700 Style Silver
$ 77 00
410050-IO-8S Ithaca Trigger Guard 800 Style Silver
$ 85 00
410060-2B-SL-SP Trigger Guard Engr Blue Screw Long "SPORTING"
$ 66 00
410060-2S-HS-HU Trigger Guard Engr Silver Hook Short "HUNTING"
$ 66 00
410060-2S-HS-SK Trigger Guard Engr Silver Hook Short "SKEET"
$ 66 00
410060-2S-HS-TR Trigger Guard Engr Silver Hook Short "TRAP"
$ 66 00
410060-2S-SL-HU Trigger Guard Engr Silver Screw Long "HUNTING"
$ 66 00

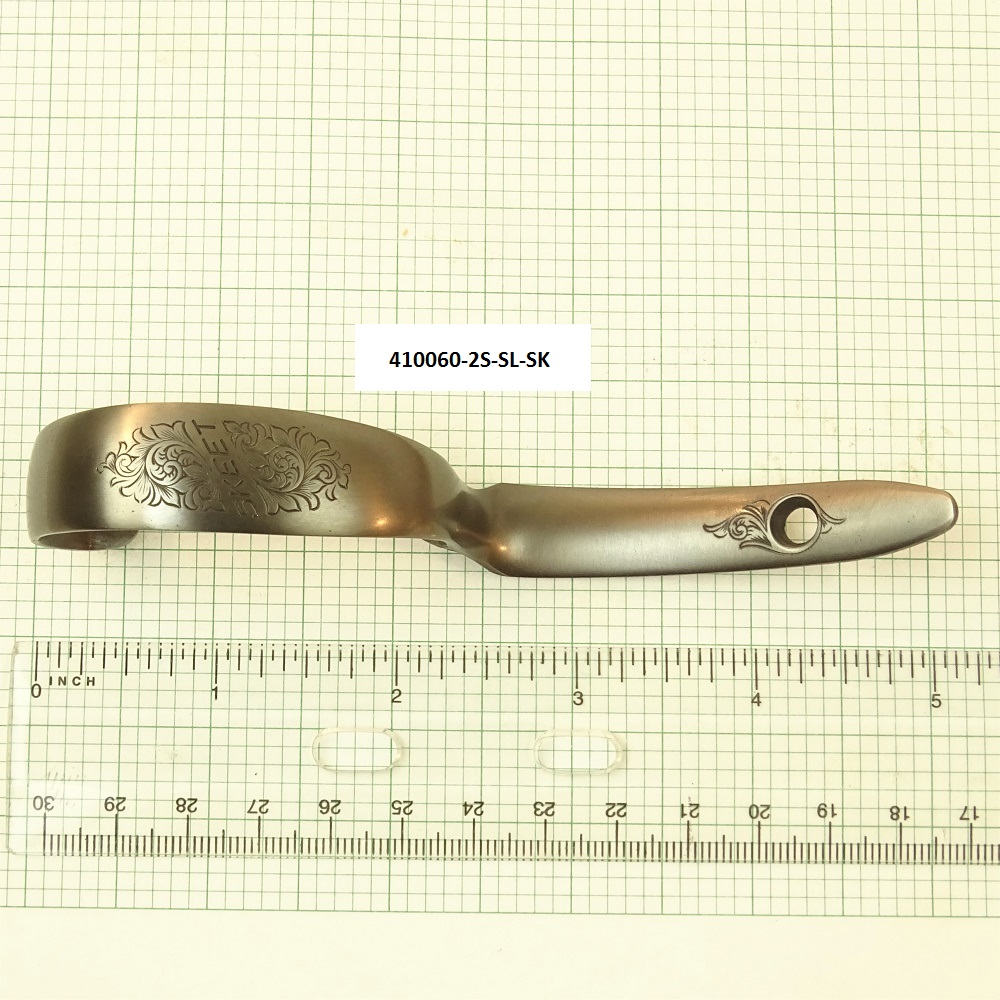

410060-2S-SL-SK Trigger Guard Engr Silver Screw Long "SKEET"
$ 66 00
410060-2S-SL-TG Trigger Guard Engr Silver Screw Long "TARGET"
$ 66 00
410060-2S-SS-TG Trigger Guard Engr Silver Screw Short "TARGET"
$ 66 00

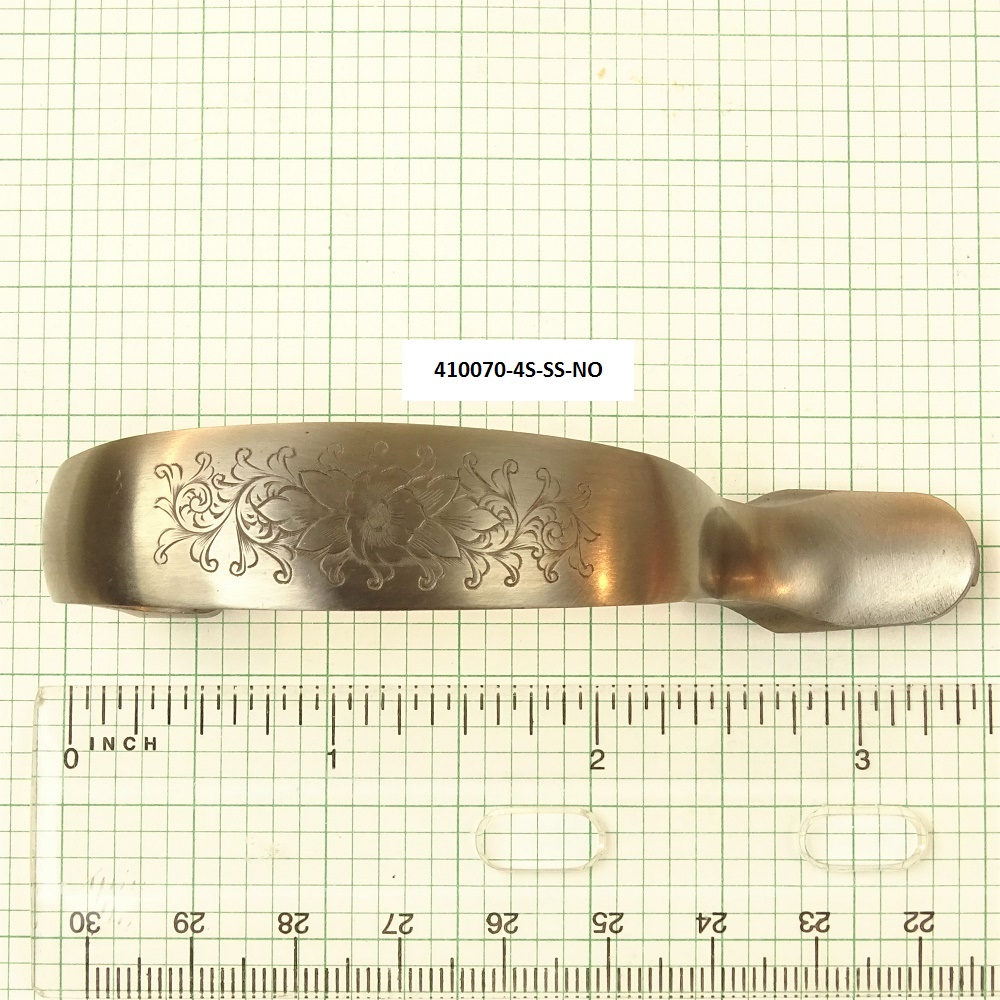

410070-4S-SS-NO Trigger Guard Engr Silver Screw Short
$ 77 00

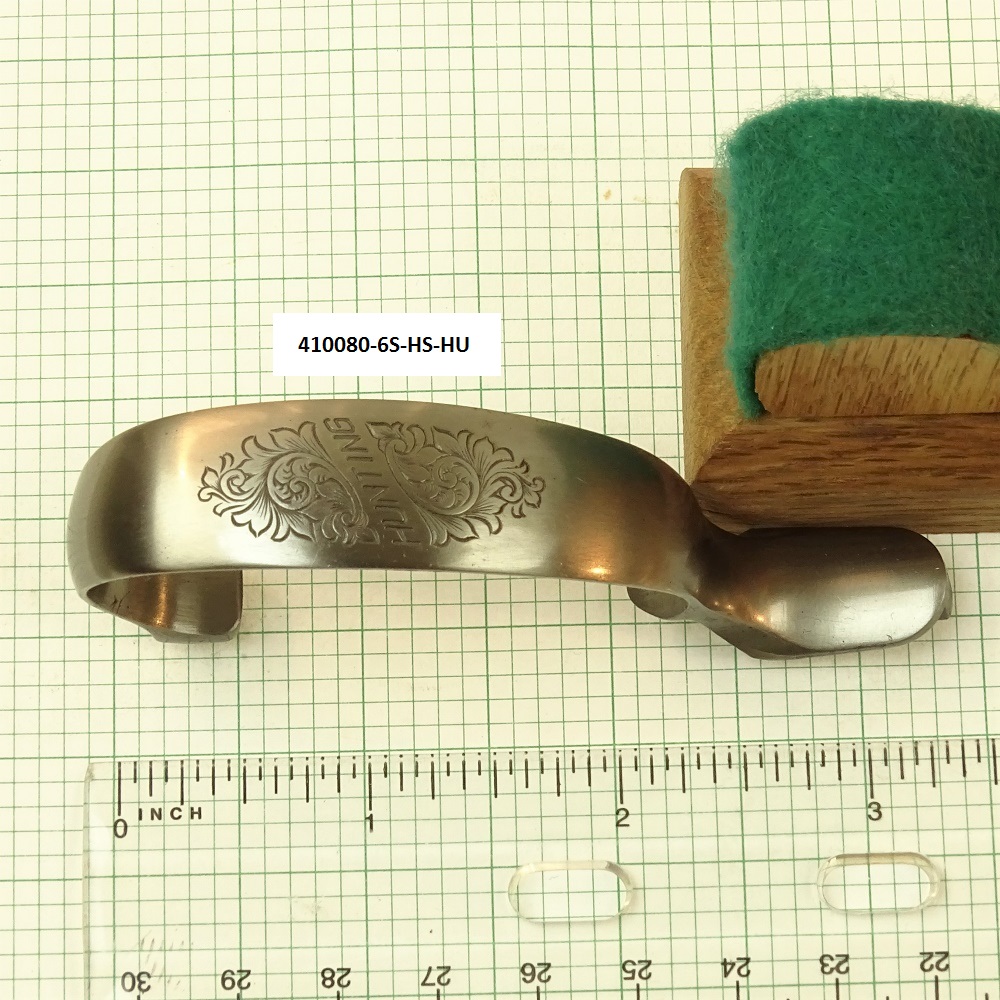

410080-6S-HS-HU Trigger Guard Engr Silver Hook Short "HUNTING"
$ 85 00
410080-6S-HS-SK Trigger Guard Engr Silver Hook Short "SKEET"
$ 85 00
410080-6S-HS-SP Trigger Guard Engr Silver Hook Short "SPORTING"
$ 85 00
410080-6S-HS-TR Trigger Guard Engr Silver Hook Short "TRAP"
$ 85 00
411001-10 Forend Screw 10MM Nitride
$ 5 00
411001-10B Forend Screw 10MM Blue
$ 5 00
411001-11 Forend Screw 11MM Nitride
$ 5 00
411001-12 Forend Screw 12MM Nitride
$ 5 00
411001-12B Forend Screw 12MM Blue
$ 5 00
411001-13 Forend Screw 13MM Nitride
$ 5 00
411001-14 Forend Screw 14MM Nitride
$ 5 00
411001-L Forend Screw Blue Long (Old Style)
$ 5 00
411001-S Forend Screw Blue Short (Old Style)
$ 5 00

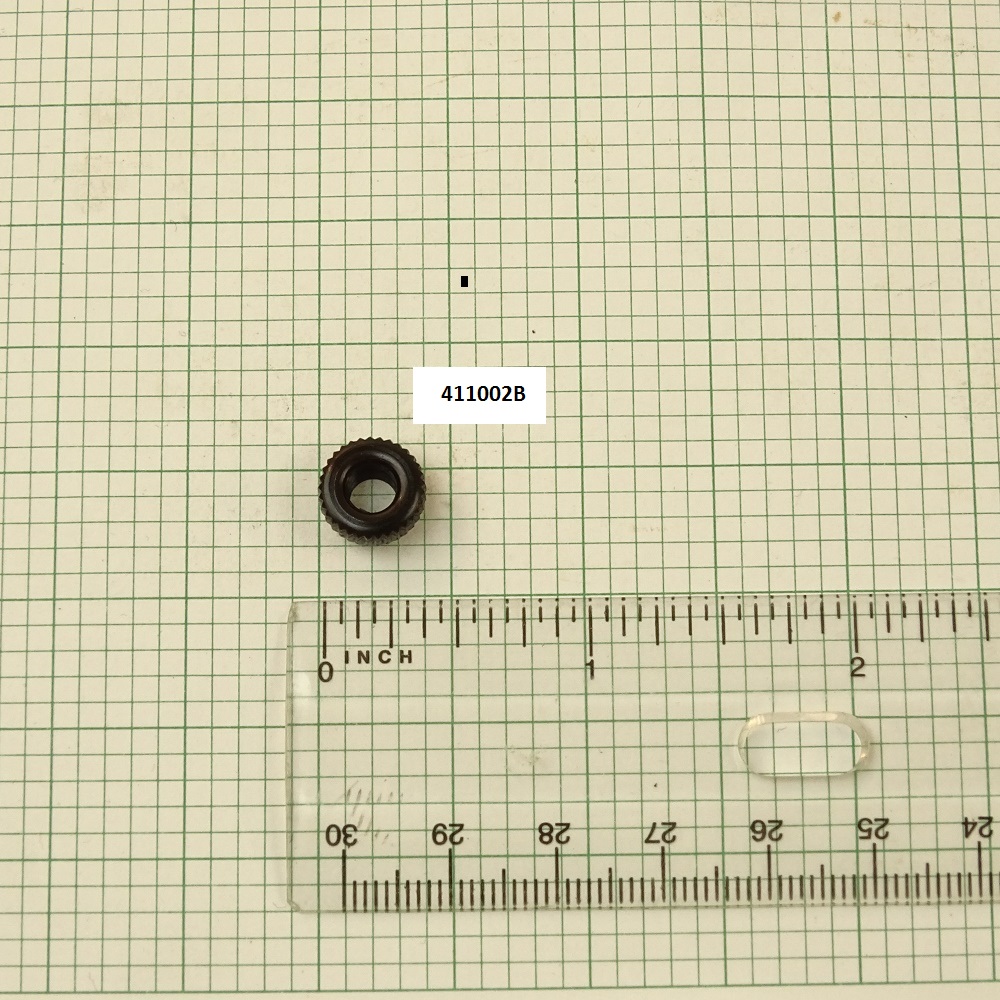

411002B Forend Nut Blue (New Style - Round)
$ 5 00
411101B Forend Lever 605/685
$ 17 00
411101C Forend Lever 885
$ 22 00
411102 Forend Lever Pin
$ 3 00

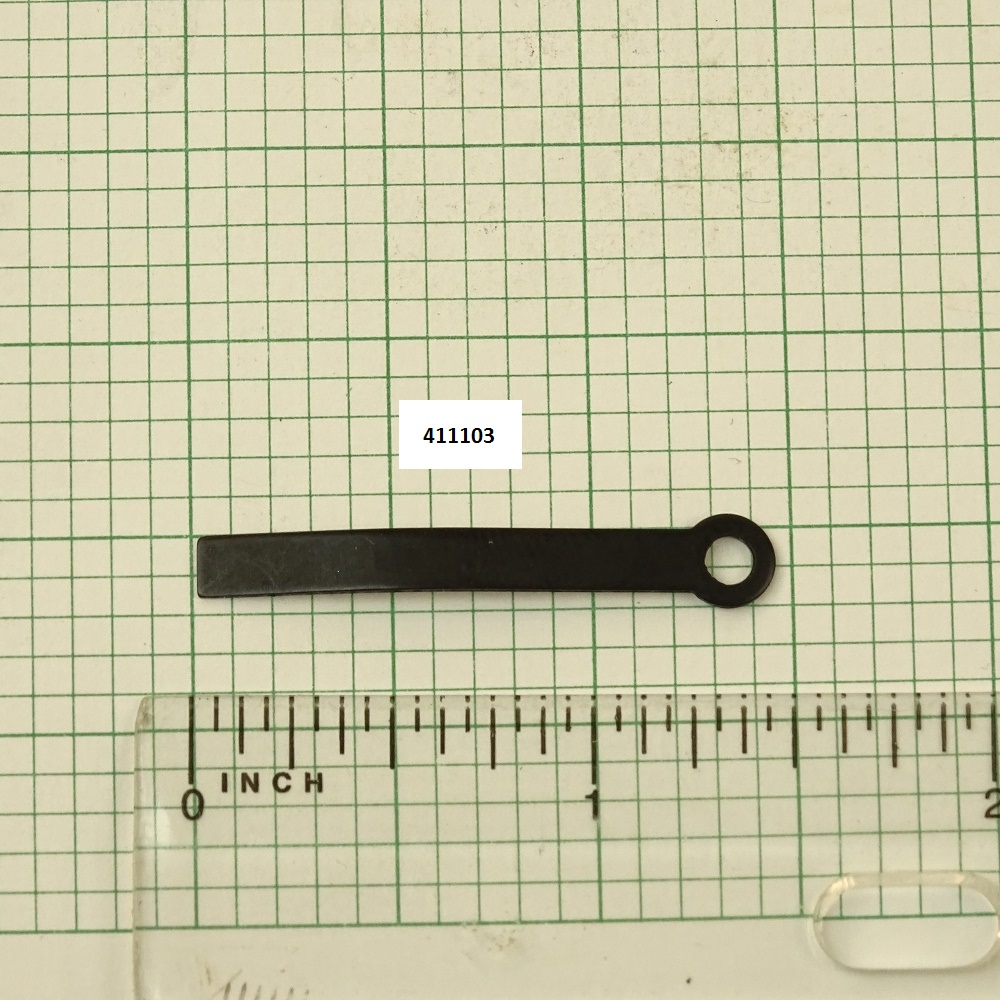

411103 Forend Lever Spring
$ 4 00
411104 Forend Lever Retainer Screw
$ 3 00
411401 Cocking Lever Screw (Old Style)
$ 4 00
411401A Cocking Lever Rivet Silver
$ 3 00
411401B Cocking Lever Rivet Blued
$ 3 00
411402 Cocking Lever Spring
$ 3 00
411404 Cocking Lever Rivet Retainer Screw
$ 3 00
411430 Cocking Lever - Left(Old Style - Screw type)
$ 28 00
411430A Cocking Lever - Left(New Style - Rivet type)
$ 14 00
411490 Cocking Lever - Right(Old Style - Screw type)
$ 28 00
411490A Cocking Lever - Right(New Style - Rivet type)
$ 14 00
416001 Stock Bolt
$ 8 00
416002 Stock Bolt Nut
$ 6 00
416003 Stock Bolt Washer
$ 2 00

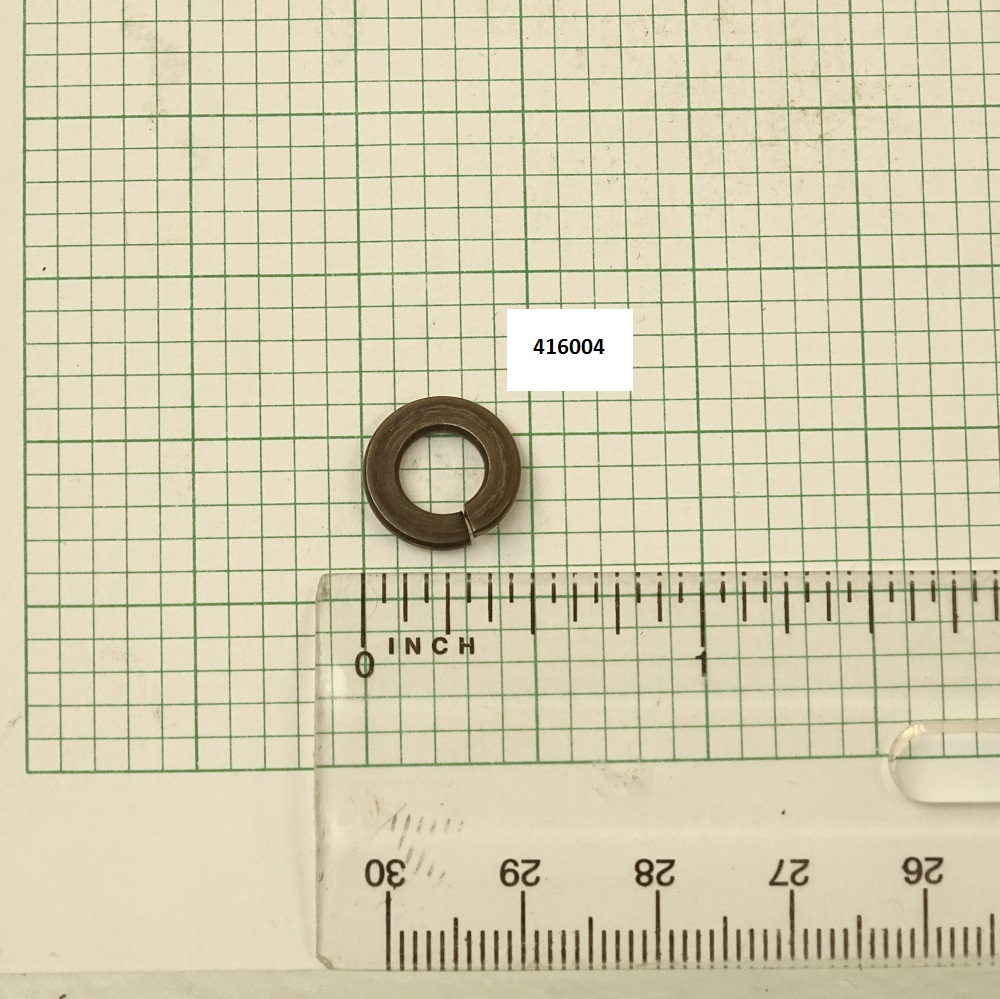

416004 Stock Bolt Spring Washer
$ 2 00
416005 Receiver Shank
$ 20 00
416006 Receiver Tang Screw
$ 6 00
416100-B Butt Plate - No Name (Stock with Concave End cut)[fitting required]
$ 10 00
416100-IO Butt Plate-"Ithaca-SKB"(Stock with Concave End Cut)[fitting required]
$ 15 00

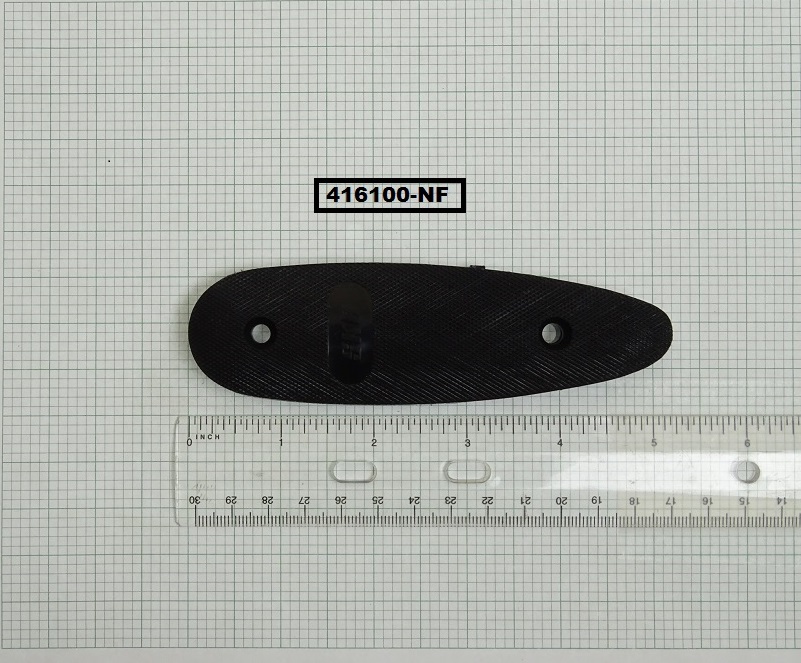

416100-NF Butt Plate-Narrow(38x128mm)(Stock with Concave End Cut)[fitting required]
$ 15 00
416100-WBY Butt Plate "Weatherby" (Stock with Concave Endcut)[fitting required]
$ 10 00
416100N Butt Plate (Stock with Straight End Cut)[fitting required]
$ 15 00
416101 Butt Plate Screw
$ 2 00
416102 Butt Pad White Line Spacer
$ 2 00
416102-NF Butt Plate White Line Spacer-Narrow (40x130mm)
$ 2 00

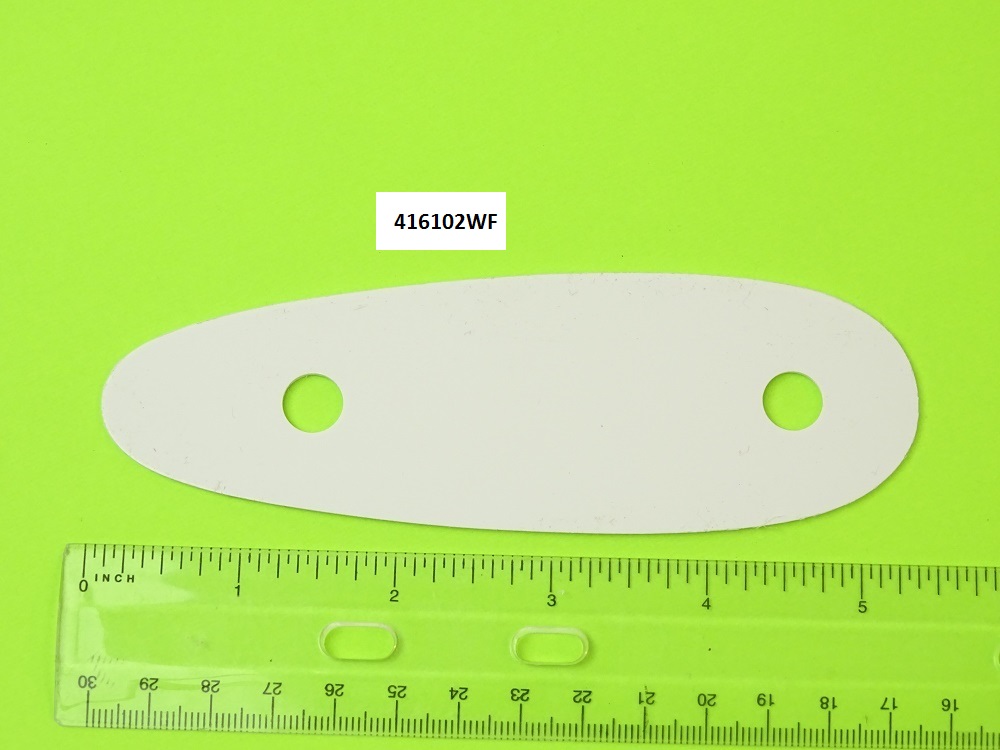

416102-WF Butt Plate White Line Spacer-Wide (44x135mm)
$ 2 00
416103-SC100 Recoil Pad-SC100, Black, 0.8", Solid Type [fitting rquired]
$ 35 00
416103-SK Recoil Pad-Skeet, Brown, 0.75", Open-X Type[fitting rquired]
$ 28 00
416201-BW Pistol Grip Cap, Black w/White Line [fitting required]
$ 10 00
416201-BWCS Pistol Grip Cap, Black w/White Line, Center Screw Style [fitting required]
$ 14 00
416201-ITDU Pistol Grip Cap, Black, w/Insert "DU" [fitting required]
$ 16 00
416201-ITQU Pistol Grip Cap, Black, w/Insert "QU" [fitting required]
$ 16 00
416201-SKB Pistol Grip Cap, Black w/White Line, "SKB" Logo [fitting required]
$ 12 00
