20/28 GA Parts

Need more assistance? Please contact our offices for additional information and support.

View Schematic



All 20ga Parts Start with "3" not "6".



ImagesItem #ComponentPriceQty
302000 Front Sight- Brass Bead (Thread Size 6- 48)
$ 4 00
303000 Middle Bead - Nickle ( Thread Size 3-48)
$ 4 00
304001 Top Lever Spring
$ 25 00
304002 Top Lever Shaft
$ 20 00
304003 Top Lever Retainer
$ 54 00
304004 Top Lever Screw - Engraved
$ 20 00
304030 Top Lever 385
$ 80 00
304040 Top Lever 485
$ 100 00
305130 Locking Piece 385
$ 40 00
305140 Locking Piece 485
$ 40 00
305300 Extractor for M/100 & 150 (single piece incl guide pin)[requires fitting]
$ 50 00
305301 Extractor/ Ejector Retaining Screw
$ 8 00
305302 Extractor Kicker for M/100 & 150 [requires fitting]
$ 36 00
305303 Extractor/Ejector Kicker Screw
$ 8 00
305324 Guide Pin for Ejector (Fits Left or Right)
$ 8 00
305325 Extractor Kicker for Ejector [requires fitting]
$ 36 00
305353 Ejector - Left - 20ga [requires fitting]
$ 48 00
305353-28 Ejector - Left - 28ga [requires fitting]
$ 48 00
305359 Ejector - Right - 20ga [requires fitting]
$ 48 00
305359-28 Ejector - Right - 28ga [requires fitting]
$ 48 00
306130 Hammer - Left
$ 40 00
306131 Sear - Left
$ 28 00
306190 Hammer - Right
$ 40 00
306191 Sear - Right
$ 28 00
306193 Sear Spring Screw (fits left or right)
$ 3 00
306300 Sear Pin
$ 8 00
306400 Hammer Pin
$ 8 00
306500 Hammer Spring (fits left & right)
$ 25 00
306730 Cocking Lever - Extractor (M/100 & 150)
$ 20 00
306735 Cocking Lever - Left Ejector
$ 28 00
306795 Cocking Lever - Right Ejector
$ 28 00
306800 Cocking Lever Pin
$ 8 00
306801 Cocking Lever Pin Stopper
$ 3 00
306900 Cocking Lever Spring for Ejector(fits left & right)
$ 4 00

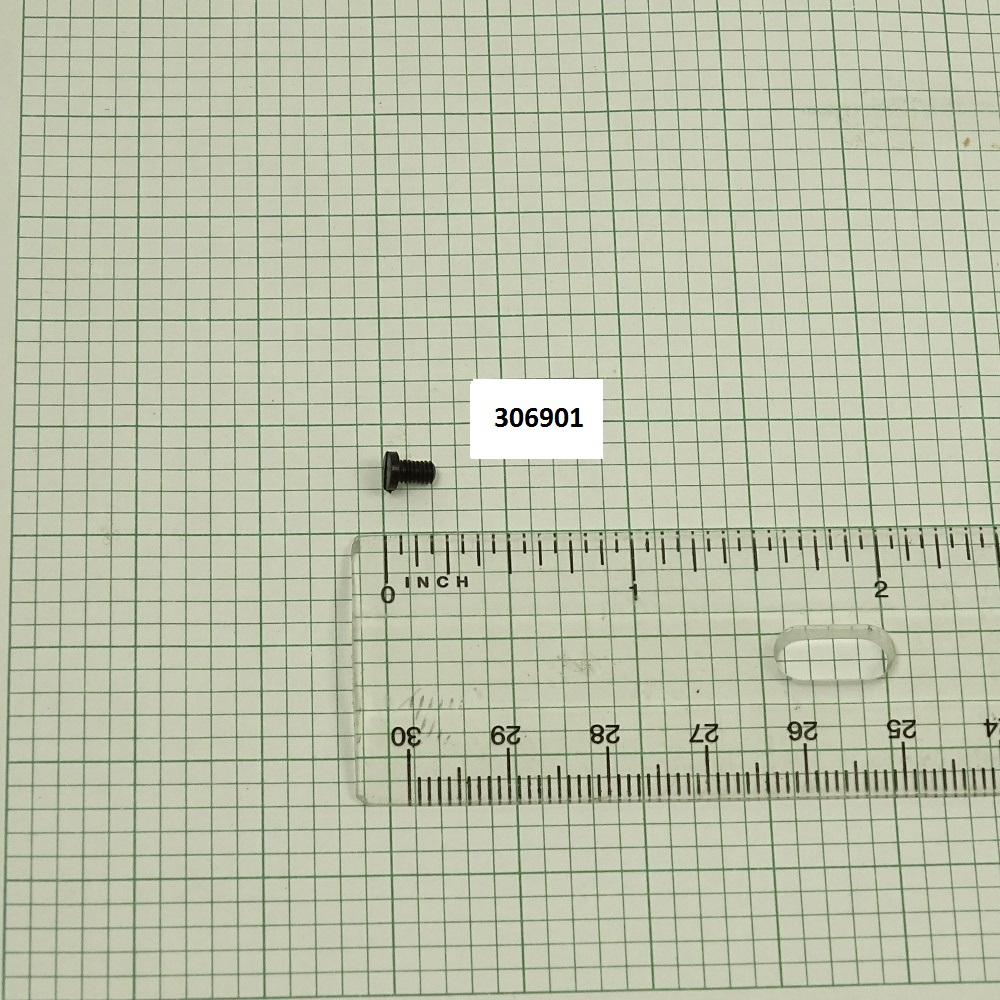

306901 Cocking Lever Spring Screw
$ 3 00
308101 Floor Plate Screw - Engraved
$ 30 00
309000AP Trigger w/Selector- Chrome
$ 60 00
309000B Trigger w/selector - Gold
$ 86 00
309000B-IO Trigger w/Selector - ITHACA - Gold (Wide Shoe)
$ 86 00
309001AP Trigger Only - Chrome
$ 45 00
309001B Trigger Only - Gold
$ 66 00
309001B-IO Trigger Only - ITHACA - Gold (Wide Shoe)
$ 66 00
309002 Trigger Pin
$ 3 00
309004 Connector Block
$ 25 00
309005 Connector Pin
$ 3 00
309006 Connector Spring
$ 3 00
309007 Connector Spring Plunger
$ 3 00
309009 Trigger Spring
$ 6 00
309010 Trigger Spring Retaining Screw
$ 3 00
309011 Connector Guide Plate
$ 6 00
309012 Selector Button
$ 6 00

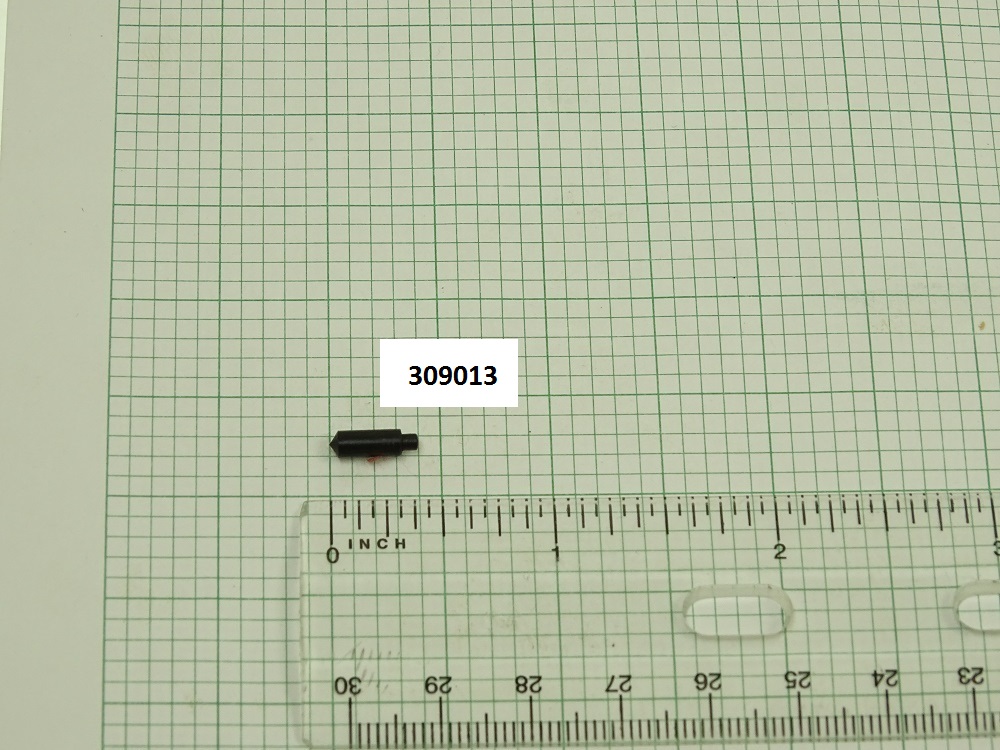

309013 Selector Spring Plunger
$ 3 00
309014 Selector Spring
$ 3 00
309015 Selector Spring Retaining Screw (old style)
$ 3 00

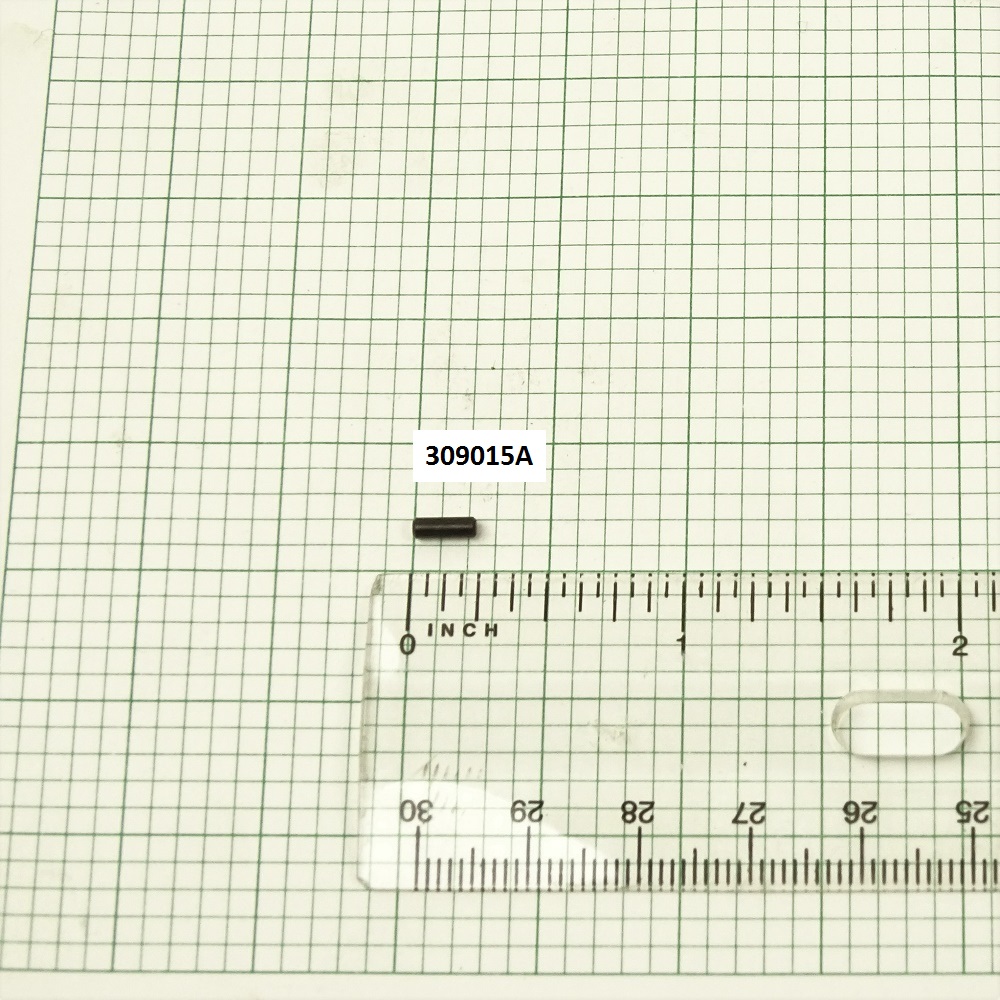

309015A Selector Spring Retaining Pin (new style)
$ 3 00
309016 Connector Guide Plate Pin (new style)
$ 3 00
309017 Connector Pin Washer
$ 3 00
309018 Connector Pin Snap Ring
$ 3 00
309400 Trigger Plate
$ 108 00
309500 Safety Button
$ 12 00
309501 Safety Button Pin
$ 3 00
309700 Automatic Safety Lever
$ 6 00
309702 Automatic Safety Connector
$ 12 00
309703 Automatic Safety Connector Pin
$ 3 00

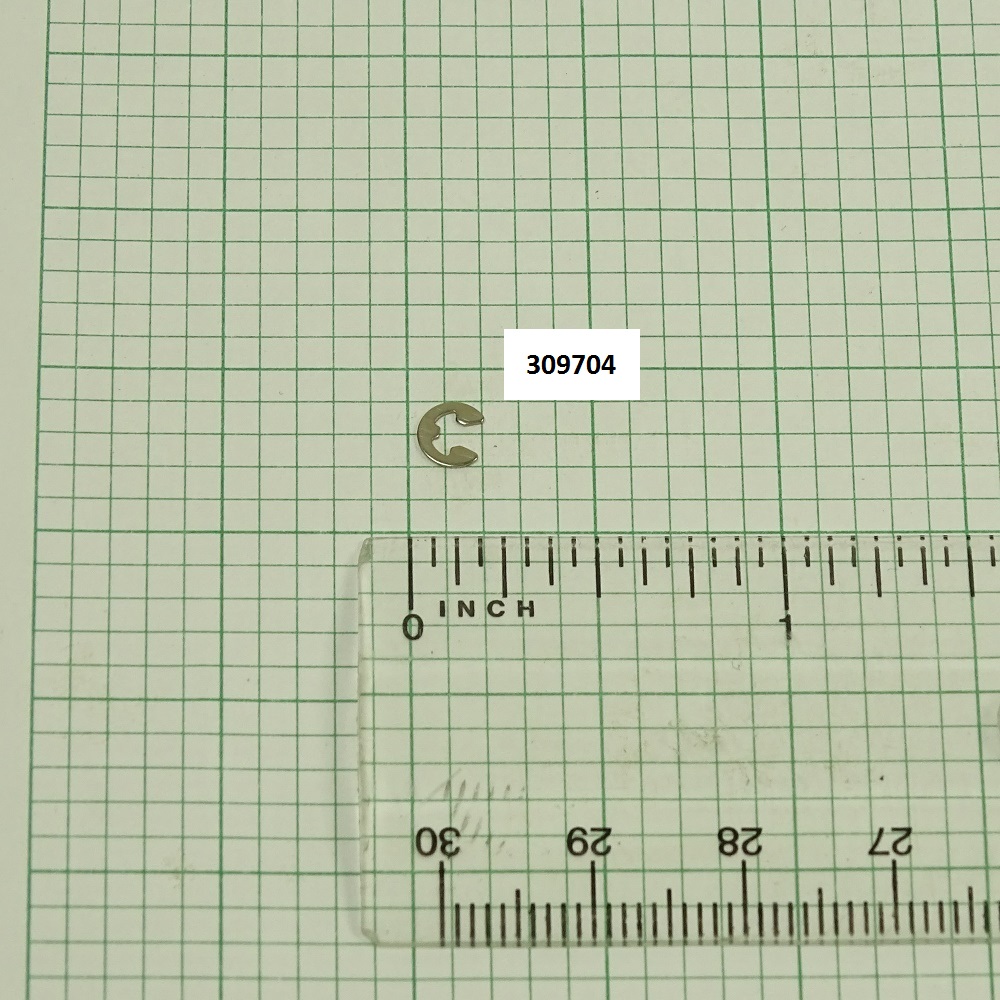

309704 Automatic Safety Connector Pin Snap Ring
$ 2 50
309800 Trigger Locking Block
$ 14 00
309801 Safety Button Spring
$ 4 00
309802 Safety Button Spring Retaining Screw
$ 3 00
310001 Trigger Guard Screw (Long Tang)
$ 8 00
310002 Trigger Guard Pin (new style - Short Tang)
$ 3 00
311101 Forend Piece Wood Screw - Extractor Type (M/100 & 150)
$ 8 00
311102L Forend Piece Screw(Beavertail-Ejector)
$ 6 00
311102S Forend Piece Screw(Splinter-Ejector)
$ 6 00

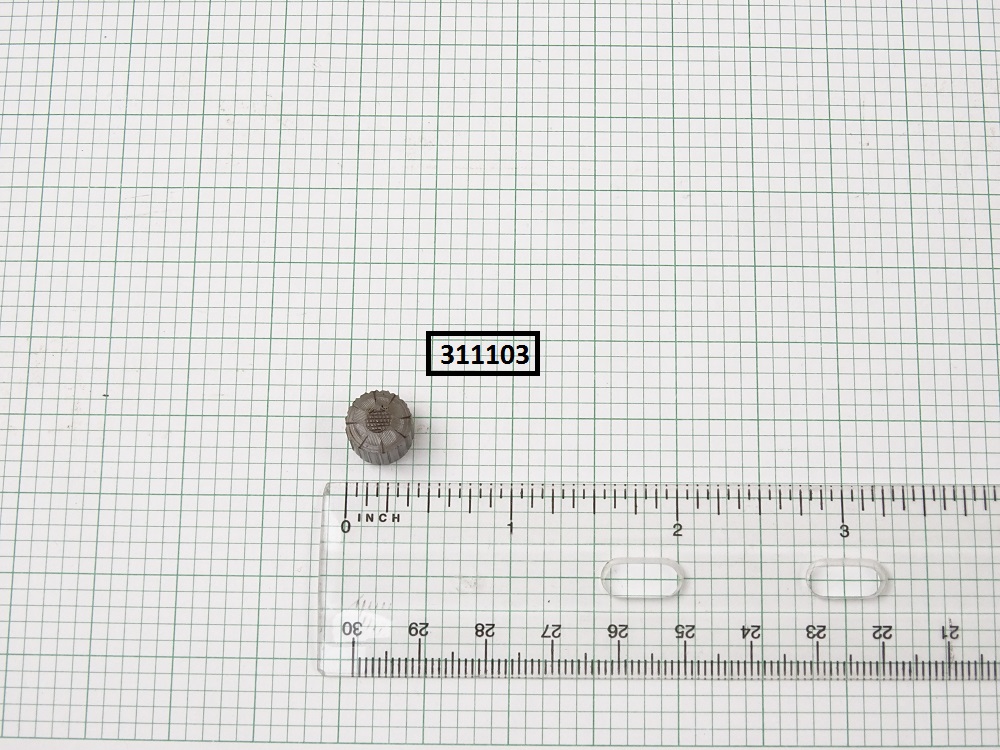

311103 Forend Nut (Engraved)
$ 18 00
311103B Forend Nut (Blued-Engraved)(100 & 200)
$ 18 00
311200 Forend Locking Piece
$ 20 00
311201 Forend Locking Piece Screw
$ 3 00
311202 Forend Push Down rod (Splinter)
$ 24 00
311202B Forend Push Down Rod-Blue (Splinter)
$ 24 00
311203 Forend Push Down Rod Guide (Splinter)
$ 18 00
311204 Forend Push Down Rod Spring (Splinter)
$ 8 00
311205 Push Down Rod Guide Screw-Blue(Beaver-Extractor)
$ 18 00
311205A Push Down Rod Guide Screw-Blue(Splinter)
$ 12 00
311205B Push Down Rod Guide Screw-Nitride(Splinter)
$ 18 00
311206 Forend Push Down Rod Guide Washer (Splinter)
$ 4 00
311252 Forend Push Down Rod (Beavertail)
$ 24 00
311253 Forend Push Down Rod Guide (Beavertail)
$ 18 00
311254 Forend Push Down Rod Spring (Beavertail)
$ 8 00
311255 Push Down Guide Retain Screw (Beavertail-Ejector)
$ 18 00
312135 Ejector Hammer Left
$ 40 00
312195 Ejector Hammer Right
$ 40 00
312400L Ejector Spring - Left
$ 25 00
312400R Ejector Spring - Right
$ 25 00
312500 Ejector Hammer Sear Pin
$ 4 00
316001 Stock Bolt
$ 8 00
316002 Stock Bolt Nut
$ 6 00
316003 Stock Bolt Washer
$ 2 00
316004 Stock Bolt Spring Washer
$ 2 00
316005 Receiver Shank
$ 20 00
316006 Receiver Tang Screw
$ 6 00
316100-IO Butt Plate-"Ithaca-SKB"(Stock with Concave End Cut)[fitting required]
$ 15 00

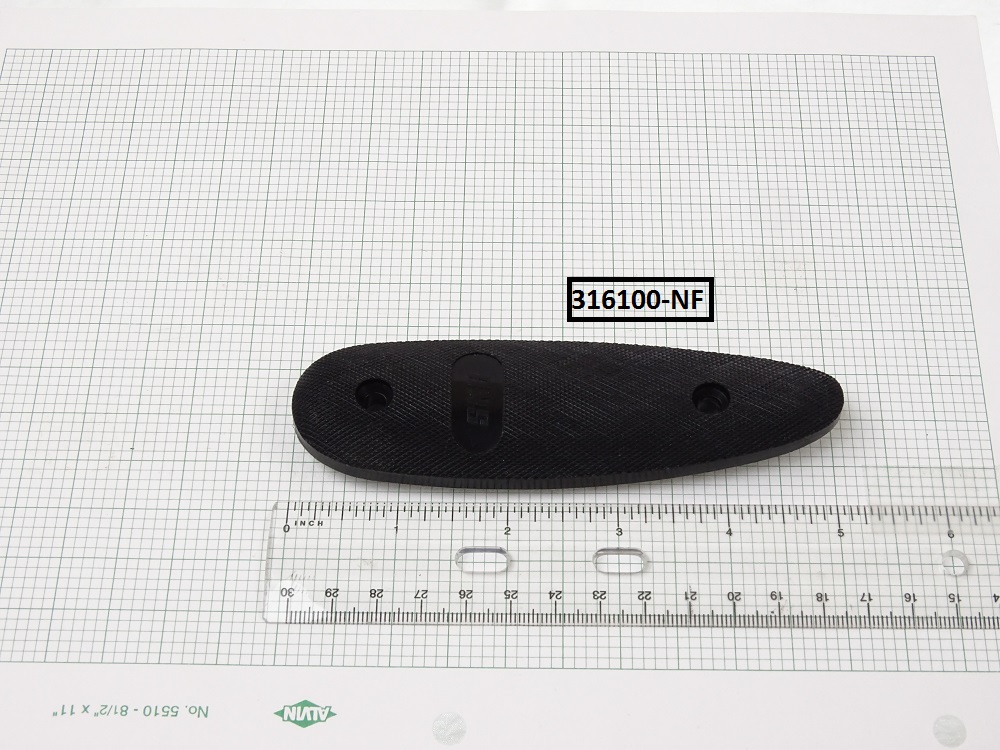

316100-NF Butt Plate-Narrow(38x128mm)(Stock with Concave End Cut)[fitting required]
$ 15 00
316101 Butt Plate Screw
$ 2 00
316102 Butt Pad White Line Spacer
$ 2 00
316102-NF Butt Plate White Line Spacer-Narrow (40x130mm)
$ 2 00
316102-WF Butt Plate White Line Spacer-Wide (44x135mm)
$ 2 00
316201-BW Pistol Grip Cap, Black w/White Line [fitting required]
$ 10 00
316201-BWCS Pistol Grip Cap, Black w/White Line, Center Screw Style [fitting required]
$ 14 00
316201-CS Pistol Grip Cap, Black, Center Screw Type[fitting required]
$ 12 00
316201-SKB Pistol Grip Cap, Black w/White Line, "SKB" Logo [fitting required]
$ 12 00
